Before answer above question to you, pls check which kinds of raw materials you can get easy and which kinds of charcoal briquettes do you want to get.
Now i introduce charcoal plant equipment from CHARCOAL FINES for your reference:
1. Raw materials: charcoal fines less than 50mm
Final briquettes applicable: BBQ
Briquettes size recommend: Square 45*45*35mm Overall Dia50mm*thickness35mm
Production Capacity: ≦2500kgph
Equipment list as follows:
— Screen
— Hammer crusher*1set;
–silo with screw feeder*3sets;
— Double shaft mixer*2 sets;
— Briquettes press( known as roller press or briquetting machine aslo);
— Briquettes dryer( dust remove system);
–Cooling device;
— Silo for briquettes;
— Package machine.
Introduction for these equipment;
Screen, separate the waste materials and big size charcoal pieces;
Hammer crusher, used to crush the big size charcoal pieces more than 5mm, because we request the charcoal fines less than 3-5mm before into mixer and briquettes, to sure they can mix well with binders( no matter the liquid or powder)
Silo with screw feeder, First set silo will be assembled before the crusher to collect the fines from screen. Second silo will be assembled after the crusher to collect the fines from crusher, meanwhile connected with mixer also; Third silo will be used for powder activity to feed evenly to mixer;
Double shaft mixer: Actually, there are two kinds of mixer, double shaft mixer& wheel mill mixer, can be used in charcoal briquettes plant, mainly depends on your activity. ( Pls contact with me if you are confused by activity and mixer, Email:info@dmsmacchina.com)
Briquettes Press, known as roller press or briquetting machine also, which is very common machine for in China market, but the quality of different machine are greatly different, especially on the parts—rollers, from the structure to the materials.
Glad to introduce of our new connection rollers, which is our new designing by thousands of test in last three years, which are greatly reduce your time and cost on changing rollers.
Raw materials CHARCOAL FINES –Equipment list in your charcoal briquettes plant!

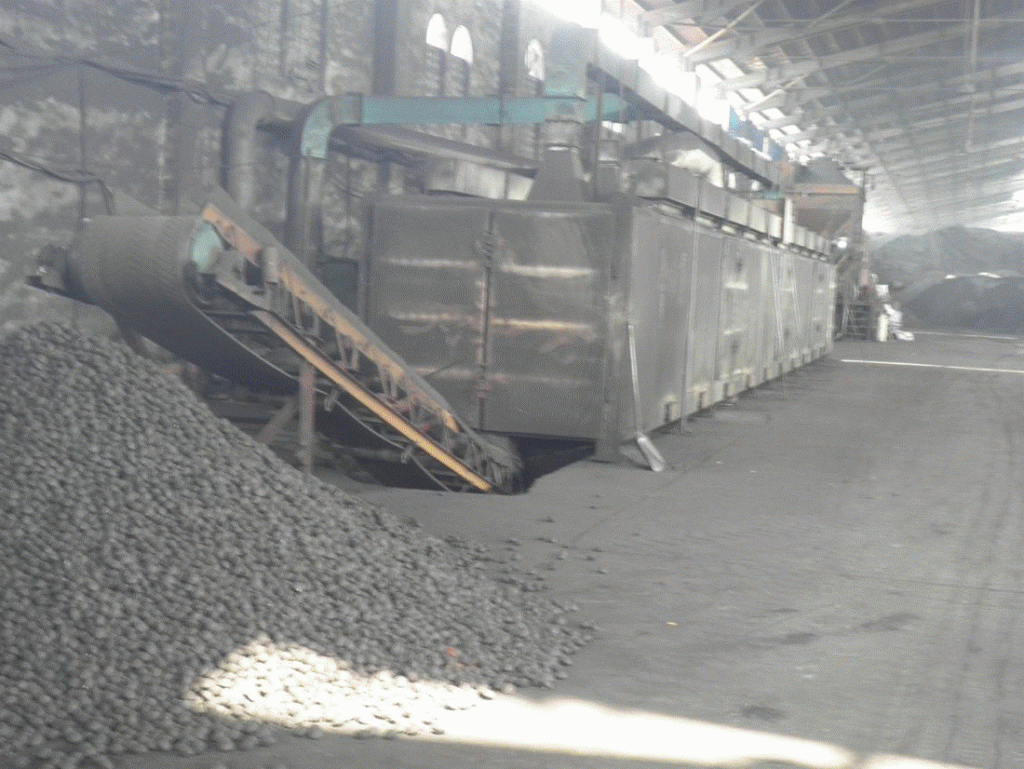

Briquettes dryer, called belt dryer or conveyor or chain belt dryer also. Which is mainly used to dry the briquettes from briquetting press machine. Charcoal briquettes dryer is Redesigned from coal briquettes machine, famous for its constant 24 hours working and excellent drying.
From the width to length and height, the belt dryer can be custom-made based on customers production capacity, moisture content input and output, even the activity quantity. The briquette dryer is the key equipment in this production line to ensure the production capacity and briquettes quality!
Pls check our new designing briquettes dryer for reference, welcome your inquiry info@dmsmacchina.com
Cooling device: Some charcoal plants owner have no much idea on the cooling device, they are confused why we need the cooling device, where will be used for ?
The danger without the cooling device is that the thousands of briquettes from the dryer with 40-60 degree are piled up together, what will happen? You can guess, the fire will be easily happened, so pls care about the cooling device designing!
Silo for charcoal briquettes: depends o n your storage, some of boss like to storage them into silo, but some of boss like to store them into storage. But no matter any way you used, remember that , the charcoal briquettes don’t like rain!
Briquettes Package Machine: which is common machine in market, you can pack the briquettes into 4-20 kg per package, just depends on your customers order. But remember to add on screen before into paper bag, because no any customers like to get the ash in the briquettes bag!
Welcome your any inquiry and technical exchange on the charcoal plant and we will try our best to give our experience to you!
